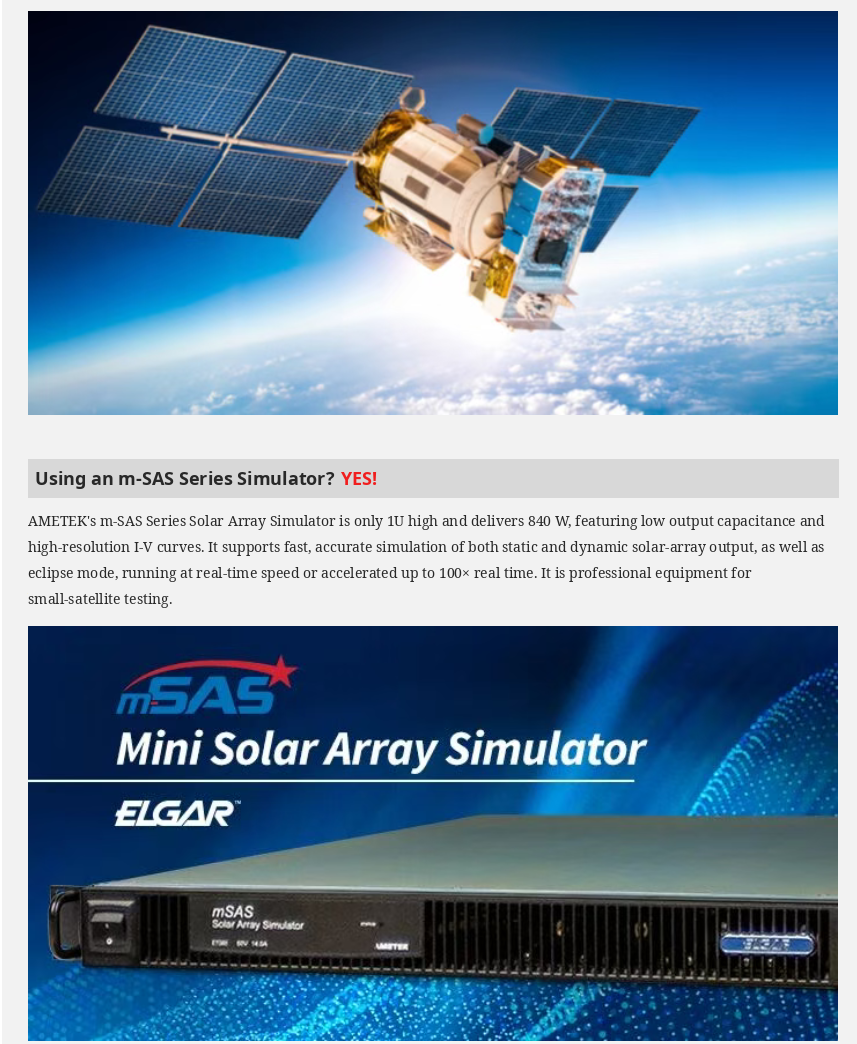

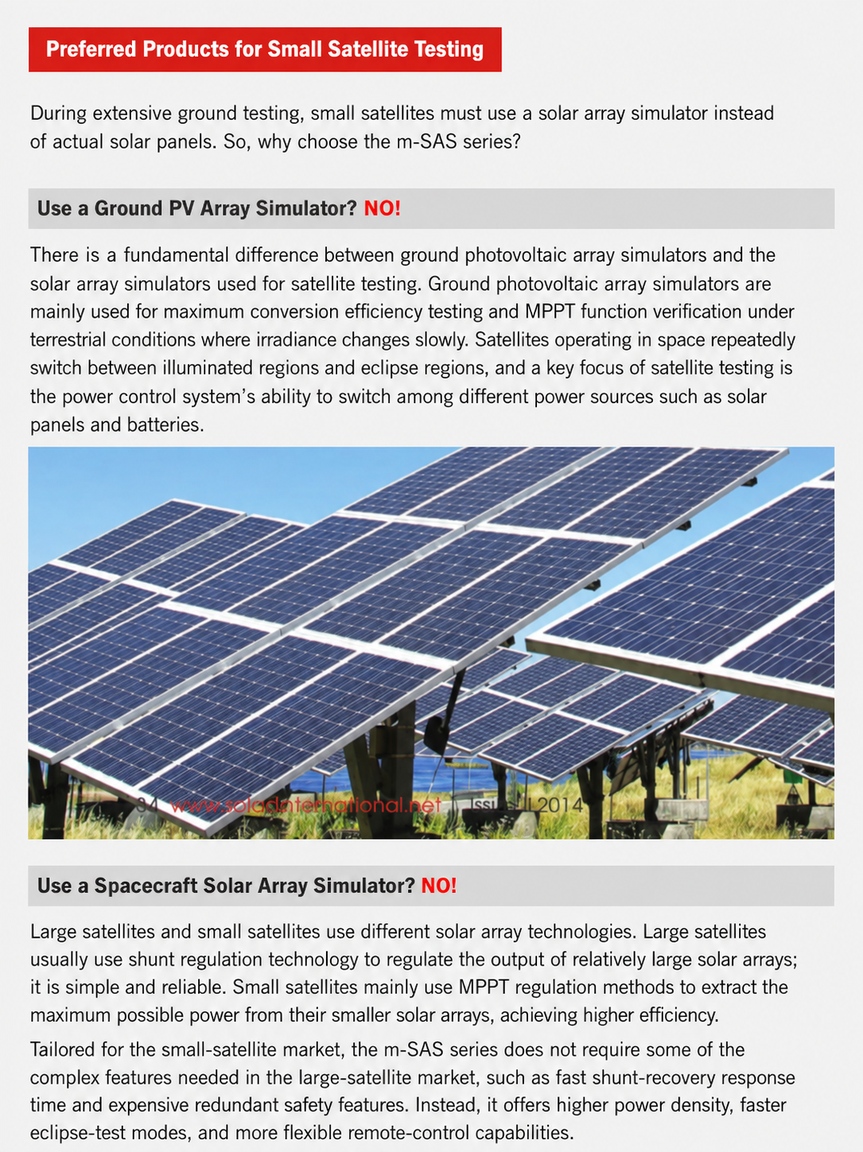

1. Product Configuration Designed to Meet Small Satellite Testing Requirements

Single-channel standalone unit, 1U height, 840 W

Voc ranges: 60 V / 80 V / 150 V

Isc ranges: 5.6 A / 10.5 A / 14 A

2. High-Speed and Accurate Static and Dynamic Simulation

The I-V curve of the m-SAS Series consists of 1,024 points with 16-bit resolution, providing smooth and accurate simulation.

The m-SAS Series supports a maximum power point tracking rate of up to 250 Hz, making it suitable for high-speed MPPT applications.

The m-SAS Series supports irradiance profile files for simulating eclipse events. Simulations can run at real-time speed or at up to 100 times the real-time speed to accelerate testing.

3. Flexible and Convenient Remote Control

The m-SAS Series Solar Array Simulator can be controlled via Ethernet using the standard m-SAS software. It also supports remote control through customized software developed by customers using SCPI commands, flexibly meeting diverse application requirements.

4. Turnkey Customized System

AMETEK provides customized systems based on the m-SAS Series Solar Array Simulator, featuring a 22-inch medium-sized cabinet with a built-in industrial PC and standard control software.
