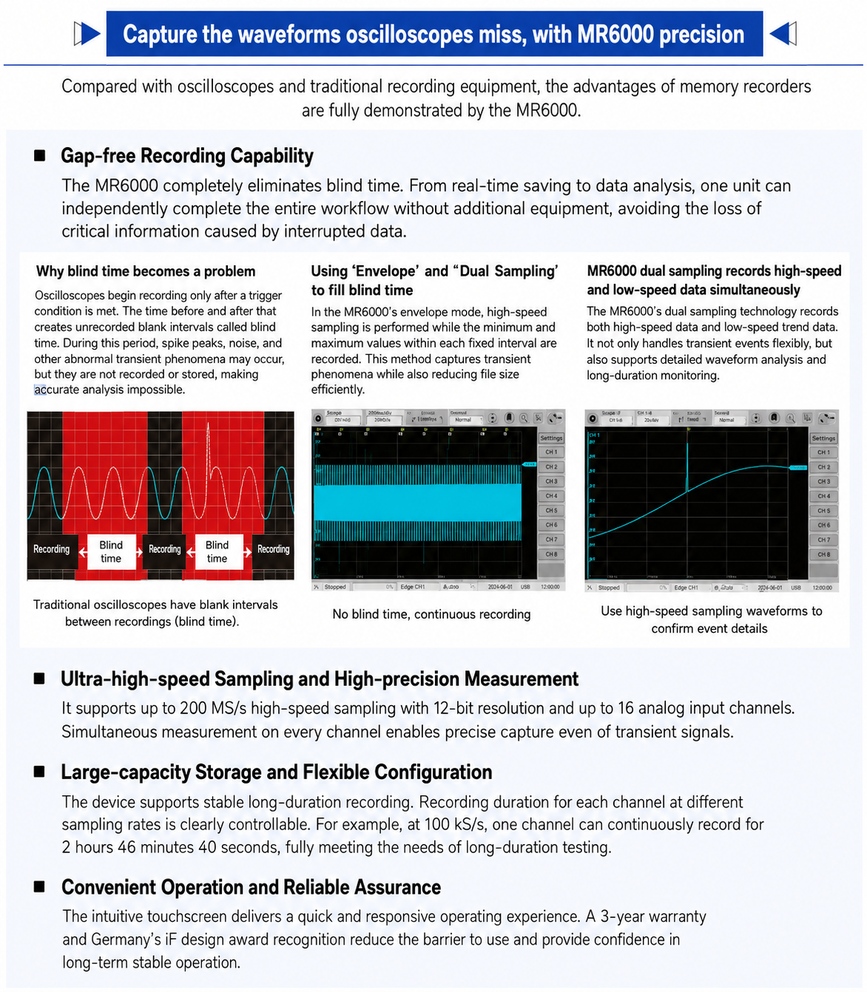

In equipment R&D and testing applications, memory recorders and oscilloscopes are often mentioned together, yet they differ significantly in their core functions and applicable scenarios. Although oscilloscopes can display waveforms in real time, their limited ability to continuously record complete data makes them unsuitable for long-duration and uninterrupted measurements. Memory recorders, on the other hand, focus on “recording” and enable uninterrupted real-time waveform capture without dead time. This makes them particularly suitable for applications requiring complete data traceability and subsequent analysis, easily accomplishing tasks that oscilloscopes may struggle to handle. The HIOKI MR6000 Memory HiCorder not only overcomes the limitations of oscilloscopes in complete data recording, but also serves as a powerful tool for the development of highly reliable equipment thanks to its outstanding performance.

Currently, thanks to its excellent performance, the MR6000 plays an important role in a wide range of industrial and R&D applications. Below are several typical application examples.

■ Inverter Evaluation and Testing

As a core device for energy conversion, an inverter’s switching waveform stability directly affects equipment efficiency and safety. The MR6000, equipped with the U8976 High Speed Analog Unit, supports a bandwidth of 30 MHz and high-speed sampling at 200 MS/s. It can accurately capture transient switching waveforms during inverter operation, helping R&D engineers clearly analyze voltage variations during switching processes, optimize inverter circuit designs, and improve equipment reliability. It also supports direct voltage input of up to DC 400 V without requiring additional voltage-dividing equipment.

■ Long-Term Monitoring of Industrial Equipment

During durability testing of industrial equipment such as motors and inverters, operating data often needs to be recorded continuously for several hours or even several days to identify potential faults. Thanks to its large-capacity storage capability, the MR6000 can completely record waveforms of key parameters such as voltage and current throughout equipment operation. Through subsequent data analysis, R&D engineers can accurately identify performance fluctuation points during long-term operation, providing data support for optimizing equipment service life.

■ Transient Signal Testing of Electronic Components

During the development of precision electronic components such as chips and sensors, nanosecond-level transient signals often need to be captured. The MR6000’s ultra-high-speed sampling capability of 200 MS/s effectively prevents high-speed signals from being missed, as could occur with conventional 20 MS/s sampling. Its 12-bit high-precision simultaneous measurement capability also ensures signal data accuracy, helping R&D engineers clearly observe the transient response of components under different operating conditions and verify whether component performance meets design specifications.

The newly launched option for the MR6000, the 1 TB SSD Unit U8335, further expands the system’s range of applications. As an option specifically designed for the MR6000, the U8335 builds on the instrument’s high-precision and high-stability performance while providing optimized upgrades for specific measurement scenarios. It is seamlessly compatible with the MR6000 main unit and can be quickly put into operation without complicated setup. This allows users to easily expand measurement capabilities while maintaining the original performance of their equipment, meet a wider variety of testing requirements, and support the steady advancement of highly reliable equipment development.
