After long-term real-world verification with major customers, the SGX series programmable DC power supply is considered a highly stable, reliable, and cost-effective testing device.

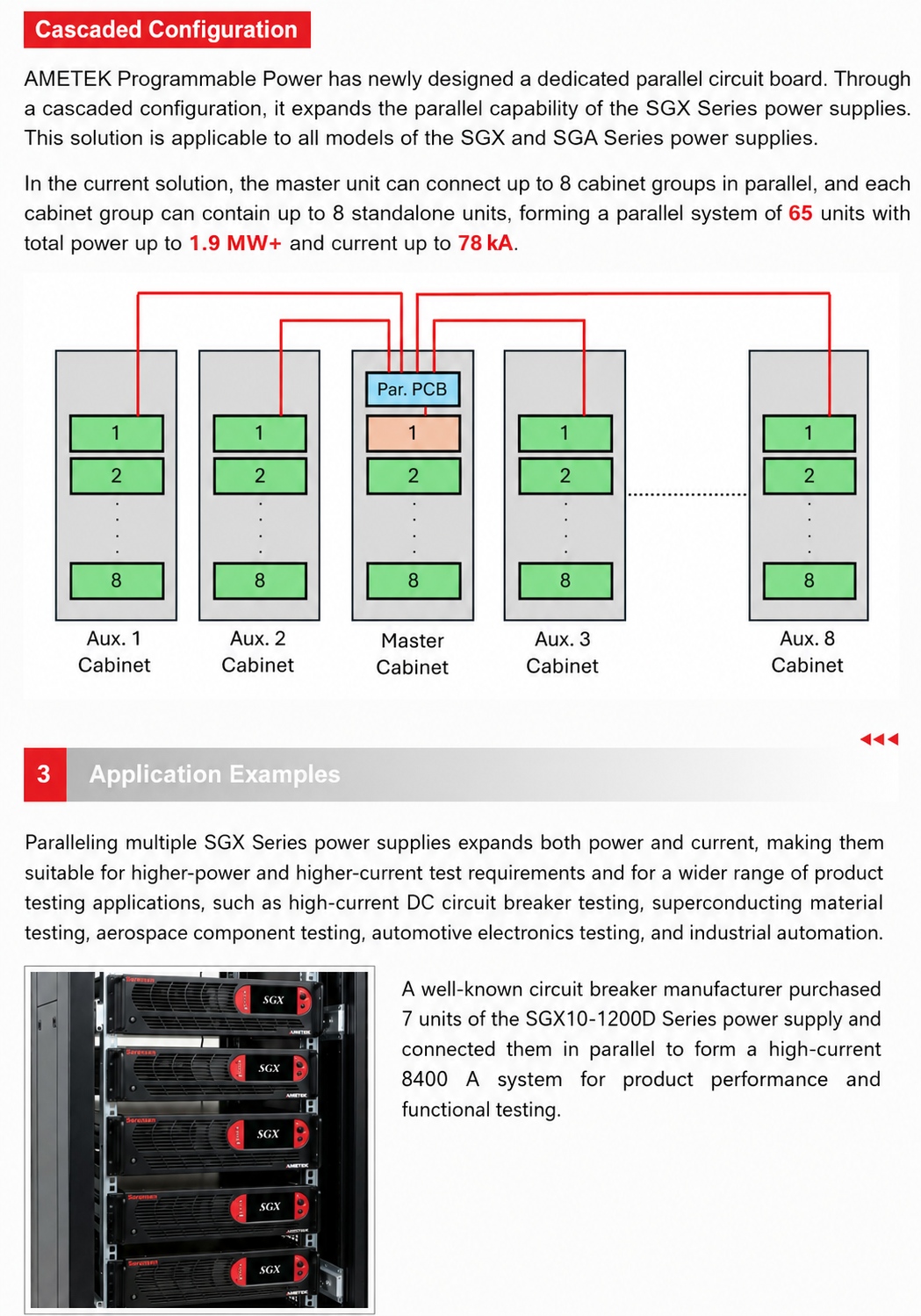

When a single SGX series power supply cannot meet testing requirements, users can parallel multiple units to expand power and current. Up to 65 power supplies can be paralleled to form a 1.9MW+ power supply system. This parallel power supply system is suitable for high-current DC circuit breaker testing, superconducting material testing, aerospace component testing, automotive electronics testing, industrial automation, and many other applications.

1

SGX Series Power Supply

The SGX series programmable DC power supply features high power, low noise, high stability, and excellent load transient response. It supports an advanced sequence output function, and supports constant voltage, constant current, and constant power output modes. The product complies with EMI, EMC safety requirements, and EU RoHS standards.

• Single-unit power 4-30kW, paralleling up to 1.9MW+

• Single-unit current 5-1200A, paralleling up to 78kA

• Single-unit voltage 10-1000V

• Features constant voltage, constant current, and constant power modes

• Powerful sequence programming functions

• Supports various communication interfaces

• Supports web-based and software control

• Standard 5-year warranty
