As the “energy heart” of electronic devices, the safety of a power adapter is directly related to users’ personal and property safety as well as the stable operation of equipment. To ensure that power adapters do not pose hazards to users or equipment during operation, electrical safety testing has become an indispensable step before shipment.

Currently, the internationally recognized safety standards for power adapters mainly include IEC 60950-1 and IEC 62368-1. In China, the corresponding national standard is GB 4943.1-2022 Audio/Video, Information and Communication Technology Equipment — Part 1: Safety Requirements (replacing GB 8898-2011 and GB 4943.1-2011). These standards impose strict requirements on insulation, dielectric withstand voltage, grounding, temperature rise, abnormal operation, and other aspects of power adapters, ensuring compliance with safety requirements throughout product design, manufacturing, and use.

Power adapter safety testing covers multiple test items, mainly including:

• Dielectric Withstand/Insulation Test: Evaluates the voltage withstand capability of the insulation materials and structure of the power adapter to prevent leakage current and electric shock hazards. Test voltages are applied between input and ground, output and ground, and input and output to verify voltage withstand performance and insulation strength.
• Leakage Current Test: Simulates actual operating conditions to determine whether abnormal leakage current occurs during normal operation, ensuring safe use under different environmental conditions.
• Ground Impedance Test: Ensures that the grounding conductor functions properly, can withstand high-current testing, and meets low-impedance requirements, helping prevent potential fire hazards caused by wiring faults.

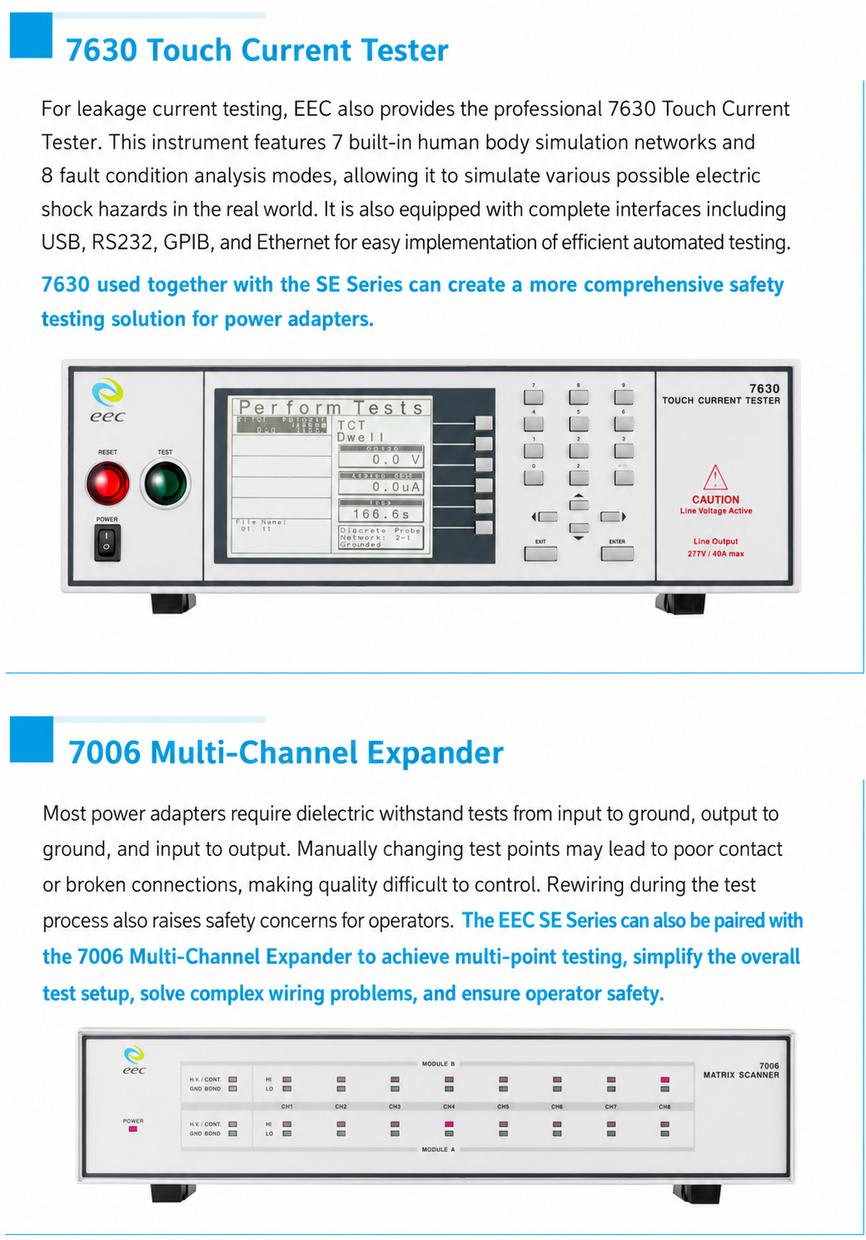

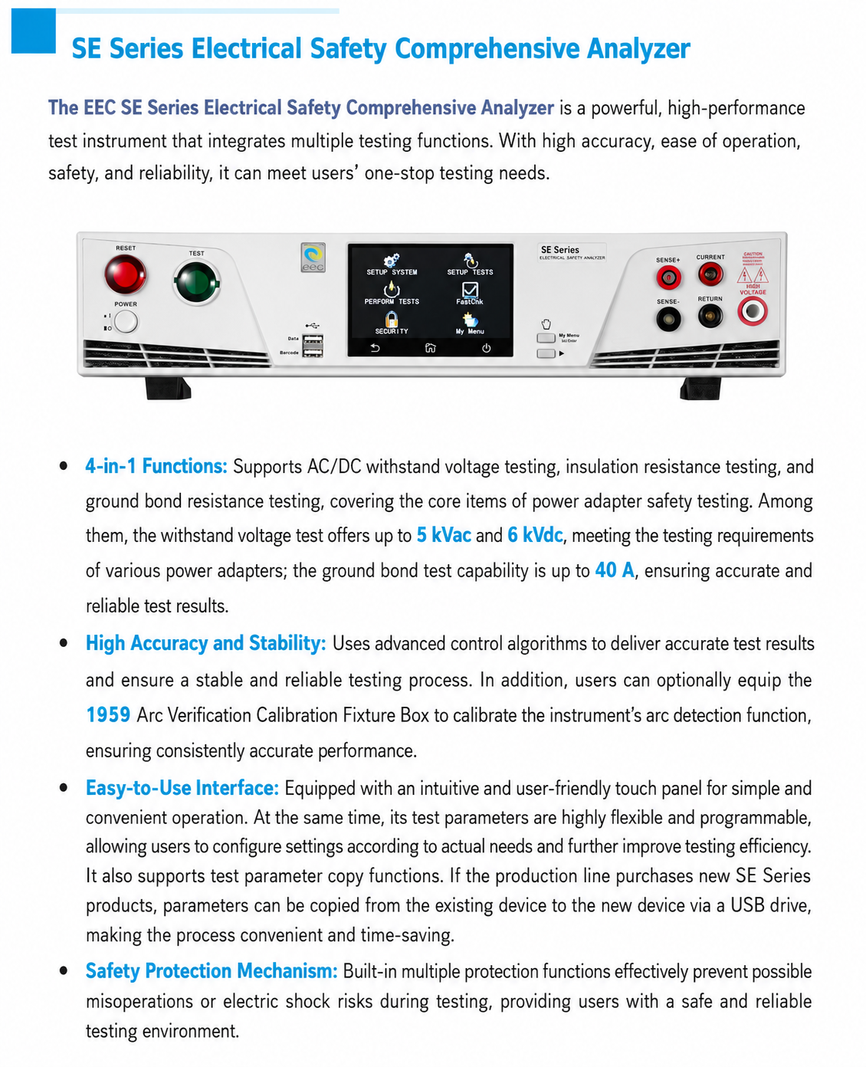

• Power adapter safety testing is a critical step in ensuring product safety, making the selection of efficient and reliable test equipment especially important. The EEC SE Series Electrical Safety Analyzers, 7630 Contact Current Tester, and 7006 Multi-Channel Expander provide a complete solution for power adapter safety testing, helping enterprises improve testing efficiency, reduce testing costs, and ensure product safety and reliability.
•
•
