AMETEK Sorensen HPX Series high-power programmable DC power supplies offer a power range of 36 kW–240 kW+ and a voltage range of 10 V–1000 V. They feature high accuracy, high stability, low noise, and fast load transient response, while also integrating system monitoring and protection functions. They are suitable for a wide range of high-power power electronics testing applications.

The HPX Series high-power programmable DC power supplies cover a wide power range and offer high accuracy and stability, rich functionality, easy programmability, rugged reliability, and excellent cost performance.

Product Features

• Up to 150 kW per cabinet and 240 kW with dual cabinets

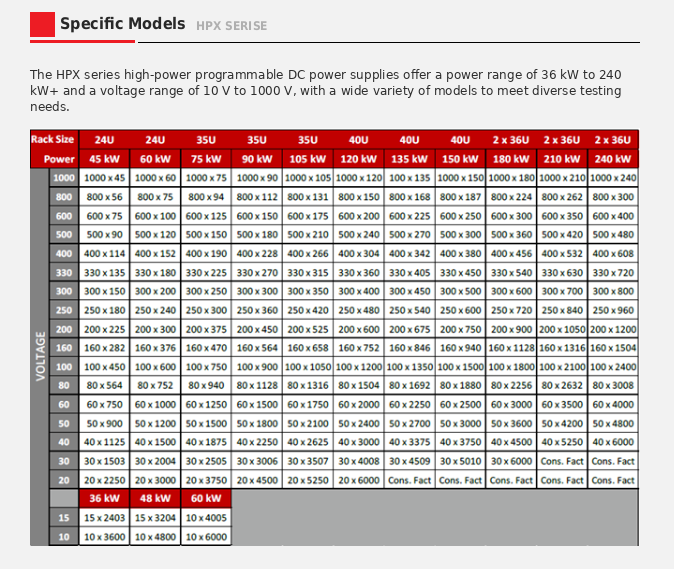

• Voltage range: 10 V–1000 V; current range: 45 A–6000 A
• Low ripple and high reliability
• Fast load transient response: prevents unexpected voltage deviations
• High slew rate: suitable for fast-changing applications
• Low adjustable noise: temperature-controlled variable-speed fans
• High measurement accuracy: precise measurement of output voltage and current

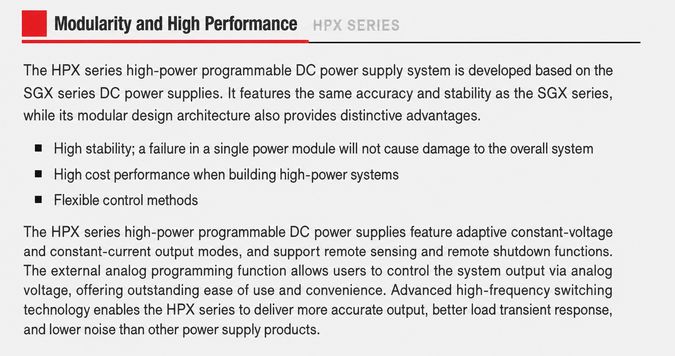

• Modular architecture: simplifies installation and maintenance
•

•
