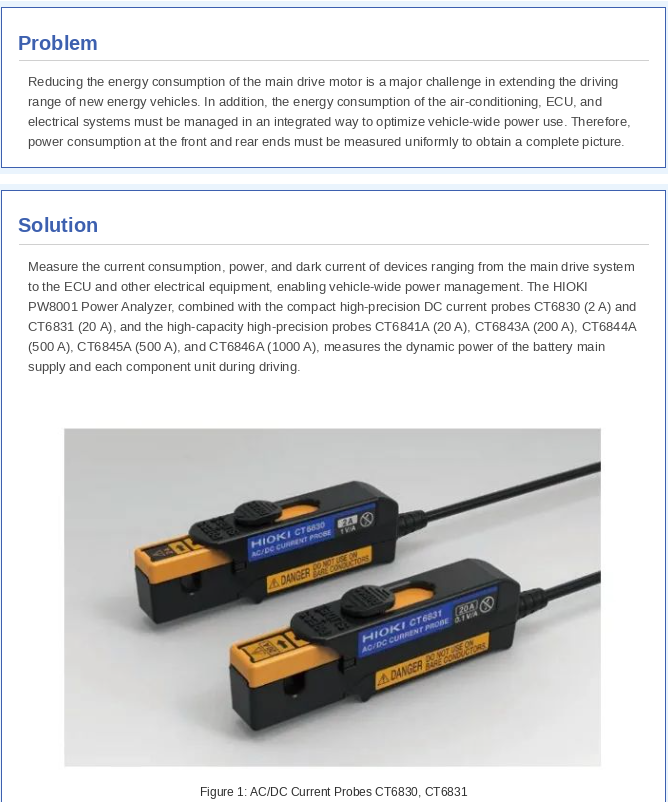

In the development process of new energy vehicles, in addition to measuring the energy of high voltage and large current at the battery terminal, it is also necessary to simultaneously understand the power consumption and standby power of each automotive circuit, including the ECU. Moreover, it is very important to reduce the overall vehicle power consumption through comprehensive power management.

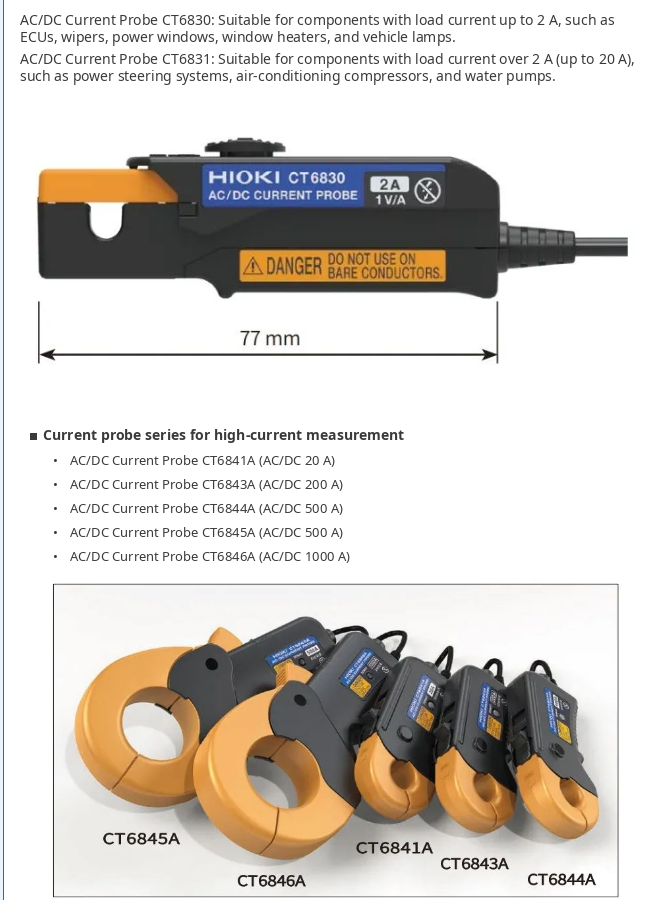

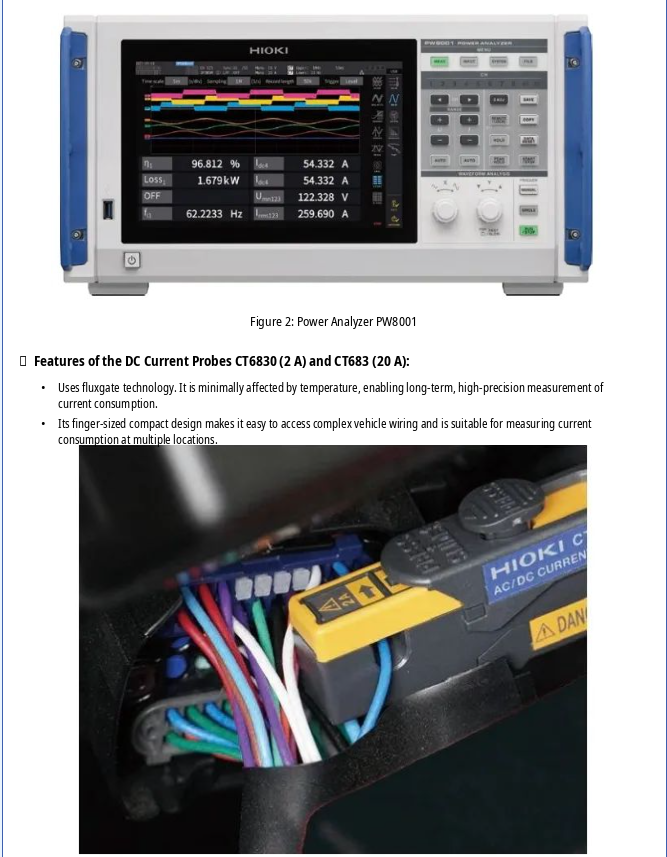

By combining the HIOKI Power Analyzer PW8001 with the small DC current probes CT6830 and CT6831 and various other DC current probes, it is possible to simultaneously measure the power consumption and standby power of electric vehicles from the battery terminal to end components, thereby enabling overall vehicle power management.

This solution can be used not only for electric vehicle R&D, but also for the development and application of various electric mobile machines such as electric scooters, electric construction machinery, and electric agricultural machinery.
